Reach Forklifts

Toyota Reflex HN RRE 140/160 Reach Forklift

  • LIFTS UP TO
    1,600 kg
  • UP TO
    10,000 mm
  • AISLE WIDTH
    2,827 mm
  • img 1,400kg - 1,600kg capacities
  • img Indoor use, Narrow chassis
  • img Ergonomic design for optimum performance
  • img Concrete

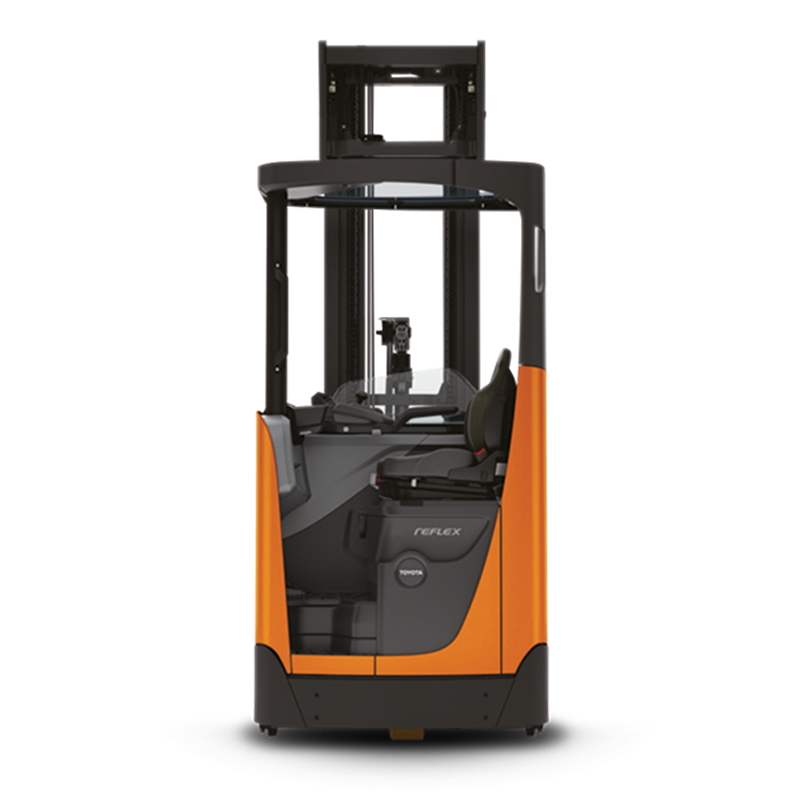

RRE140/160HN Reach Forklift

  • Toyota Reflex HN-Series are reach truck forklifts available within Toyota's range with capacity up to 1600kg and lift heights up to 10 metres.
  • The new Reflex HN-series are built for applications requiring a narrow chassis width, such as block stacking or drive-in racking, or for work in tight situations.
  • Each reach forklift is configured to provide the optimum chassis/battery/mast combination according to the requirements of the application.
  • The HN-Series 140 and160 models are the perfect choice for the customer in need of a multipurpose reach forklift with a maximum of cost efficiency.
  • Available in lithium-ion and lead acid battery versions.
  • Overseas model shown in video. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details.
  • Two different masts - tilting mast on HN 120 or mast with tilting forks on N 140 and N 160.
  • Very fast acceleration and maximum speed due to AC-powered drive motor.
  • Electronic regenerative braking (motor braking, pedal braking or change of drive direction).  Programmable to suit the driver.
  • State-of-the-art electronic system, incorporating CAN and Mosfet technology - requiring less wiring and giving greater reliability.
  • Parking brake is automatically applied when the truck is stationary, and automatically releases when the accelerator is depressed.
  • Electronic fault diagnosis and historic logging. Error and caution codes alert the driver and reduce speed or stop the forklift. A service timer counts time to next service and alerts the driver when it is due.
  • Excellent driver ergonomics, with adjustable seat, pedals and Toyota Control console, with electronic control of all hydraulic functions.
  • Panoramic vision through clear view mast and overhead guard. Visibility window for improved rear view.
  • 360° electronic, progressive and programmable steering.
  • Three push-buttons located on the dashboard allow easy selection of performance parameters. Standard set-up choices available.  Up to 10 PIN numbers available to provide access control.

Optional extras include:

  • Narrow overhead guard.
  • Cold store version.
  • Like all Toyota forklifts, the Toyota Reflex range of reach trucks is built according to the famous Toyota Production System, assuring the highest levels of quality, durability and reliability.

  • The Toyota Reach Forklifts are available in lead acid battery or lithium ion versions.
  • For more information about Toyota's Energy Solutions click here.
